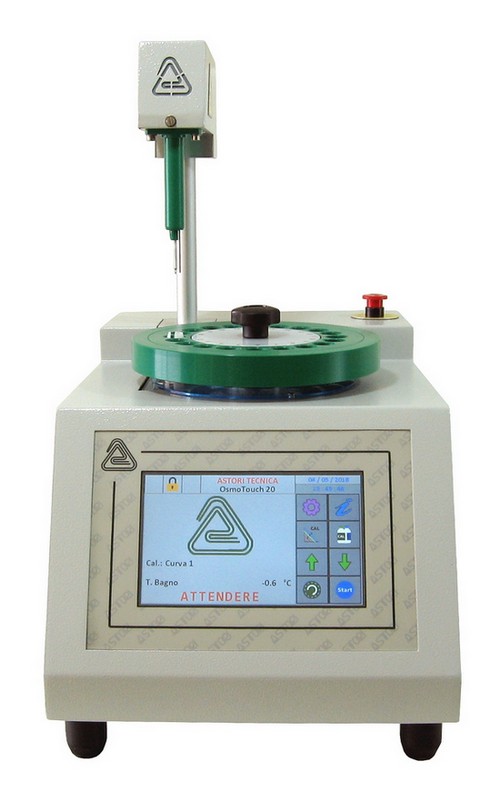

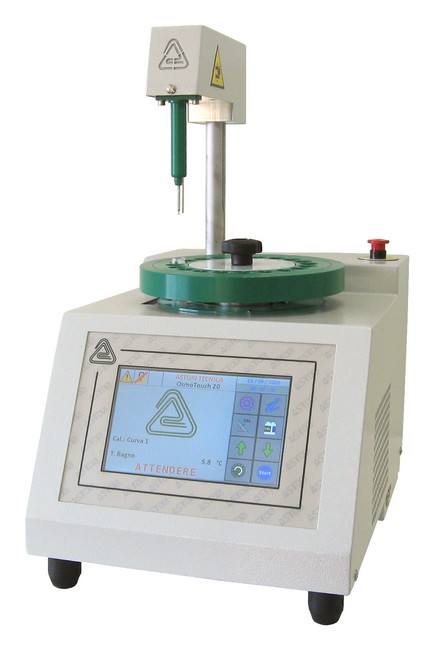

OsmoTouch 20 Osmometer
The Next-Gen freezing-point osmometer with 20-place autosampler
OsmoTouch 20 is an automatic osmometer with a 20-place carrusel-based autosampler for the rapid determination of the cryoscopic point variation (osmolality) in biological fluids, pharmaceutical samples and other solutions.
This next generation osmometer includes a lot of useful features that the most recent technology allows: a full colour 7” touchscreen display, real-time visualization of the freezing curve, stable memory for more than 4,000 results, a PC software for data handling, USB ports for downloading all data to a pen drive, updating the firmware and connecting an optional barcode/QR-code reader, and much more. In particular, all OsmoTouch model are designed with characteristics in compliance with FDA norm 21 CFR Part 11, such as the Audit Trail, the set up of two different password levels, results including date, hour and username, without any possibility to modify them.
Compact and sturdy, OsmoTouch 20 can work with room temperatures up to 36°C. It is perfect for pharmaceutical/cosmetic/homeopathic applications and for uses in hospitals and R&D laboratories. Excellent for analysis of semiviscous samples.
New functions, great advantages:
- Real-time graph of the sample temperature during each analysis
- A 20-digit alphanumeric ID code can be added to each sample, easily
- Optional USB barcode and QR-code reader for a quick sample identification
- Results shown in different colours for a quick identification of anomalies or critical values
- Features in compliance with the FDA norm 21 CFR Part 11: Audit Trail, set up of two different password levels (administrator and user), users' passwords obscured by "***", results with date, hour and username (electronic signature) and unmodifiable results to avoid any fraud
- Stable memory for 3 different calibration curves based on the favorite analytical ranges
- Stable memory for up to 4,000 results
- Easy download of test results to a USB pen drive
- Easy firmware updates by means of a USB pen drive
- Real time PC monitoring or quick download of test results to a PC thanks to CryoSoft Touch data handling software
- Immediate visualization of error messages
Technical characteristics:
Sample capacity: up to 20 samples- Full colour 7” touchscreen display
- Bath with Peltier cells controlled by software
- Operating ambient temperature: +5°C to 36°C
- Automatic calibration
- Lash and agitation width controlled by software
- Sample volume: from 50 to 200 μL
- Test duration: about 2-3 minutes/sample (from 0 to 900 mOsm/Kg)
- Warm-up time of the equipment: about 5 minutes
- Analytical range: from 0 to 3,000 mOsm/Kg
- Resolution: 1 mOsm/Kg
- Repeatability and reproducibility: ±2.5 mOsm/Kg (from 0 to 600 mOsm/Kg) or ±0.5% of the value (from 600 to 3,000 mOsm/Kg)
- 2 x USB ports for data downloading to a pen drive, updating the firmware and connecting an optional barcode/QR-code reader
- 2 x RS232 ports for connecting the provided thermal printer and a PC
- Power absorption: max. 150 W
- Dimensions: 285x485x360 mm (wxdxh, head down)
- Net weight: 17.4 Kg
Look at the following screenshots from the new CryoSoft Touch data handling software:
